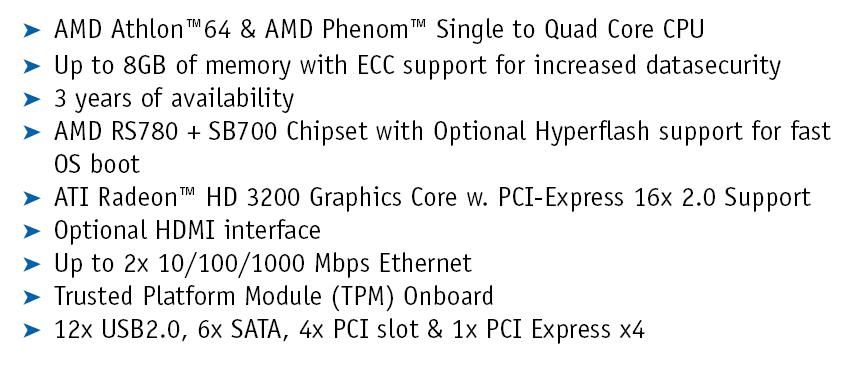

Processor	AMD Athlon™64 & AMD Phenom™ Single to Quad Core
Chipset	AMD RS780 + SB700 Chipset with Hyperflash support for fast OS boot (Optional)
BIOS	AMI®
Power Management	ACPI 3.0
Bus	4x PCI connector 1x PCI-Express 16x 2.0 Support 1x PCI Express 4x
DRAM	Up to 8GB of memory with ECC support for increased datasecurity
Graphics	Integrated version of ATI Radeon™ HD 3200 Graphics Core
Resolution	Up to: CRT 2048x1536, DVI 1600x1200 including 16x9 support
Graphic Interfaces	On board CRT, PCI-Express x16, DVI-D, HDMI (optional)
HDD	6x Serial ATA150/300 and 1x PATA 133 (2.54 mm connector) / Hyperflash
Parallel Port	Bi-directional w. SPP, ECP or EPP mode, shared floppy drive option (internal pin connector)
Serial Port	2x RS232C serial ports with FIFO
RAID	HDD RAID 0/1/10

USB	12x USB 2.0 (6x internal and 6x external)
Ethernet	Up to 2x 10/100/1000 Ethernet Controller, Marvel 88E8055
Keyboard/Mouse	Standard PS/2 mouse and keyboard (internal connection available)
Sound	HD Audio
Hardware Monitoring	Temperature, fan and voltages
Monitoring API/DMI	Software interface to monitor hardware values including HDD S.M.A.R.T.
Battery	On board Lithium battery and external battery input
Operating Temp.	0-50°C
EMC/ESD compliance	Compliance with EN55022 and EN61000-4-2 (ESD)
Safety compliance	UL609501-1:2003, First edition CSA C22.2 No. 60950-1-03, First edition, April 1. 2003
Environmental compliance	RoHS and Lead-free production
Dimensions	ATX, 300.5 mm x 243.8 mm (12“ x 9,6”)
Power Supply	ATX & BTX

Test: Kontron KT780/ATX UK
