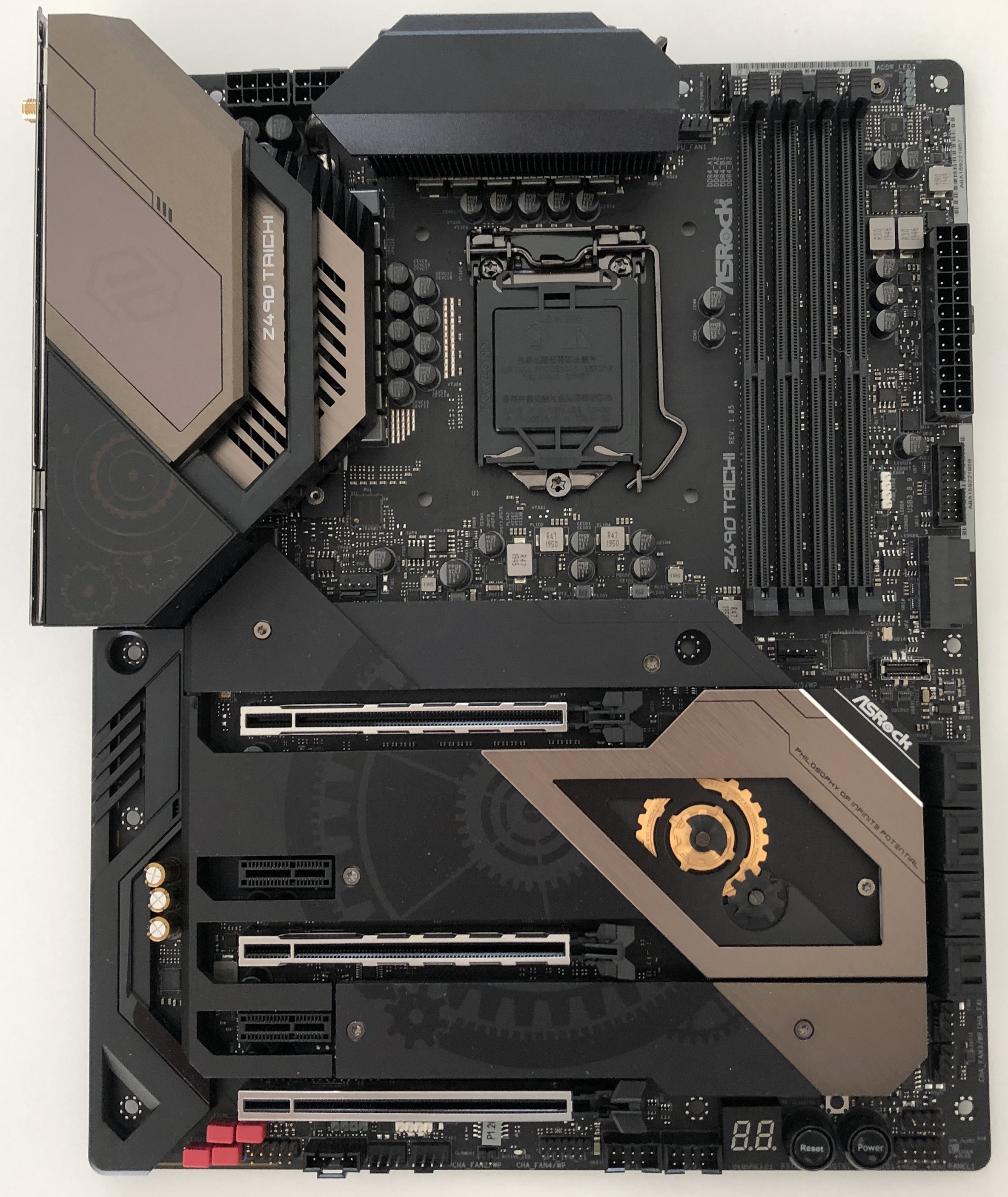

Test: ASRock Z490 Taichi

Specifikationer

Bundkortet er  udstyret med ASRock Polychrome SYNC som er en del af bundkortets RGB LED lys, og softwaren kan bruges til at skabe fantastiske effekter i det indbyggede LED lys eller tilsluttede RGB LED striber.

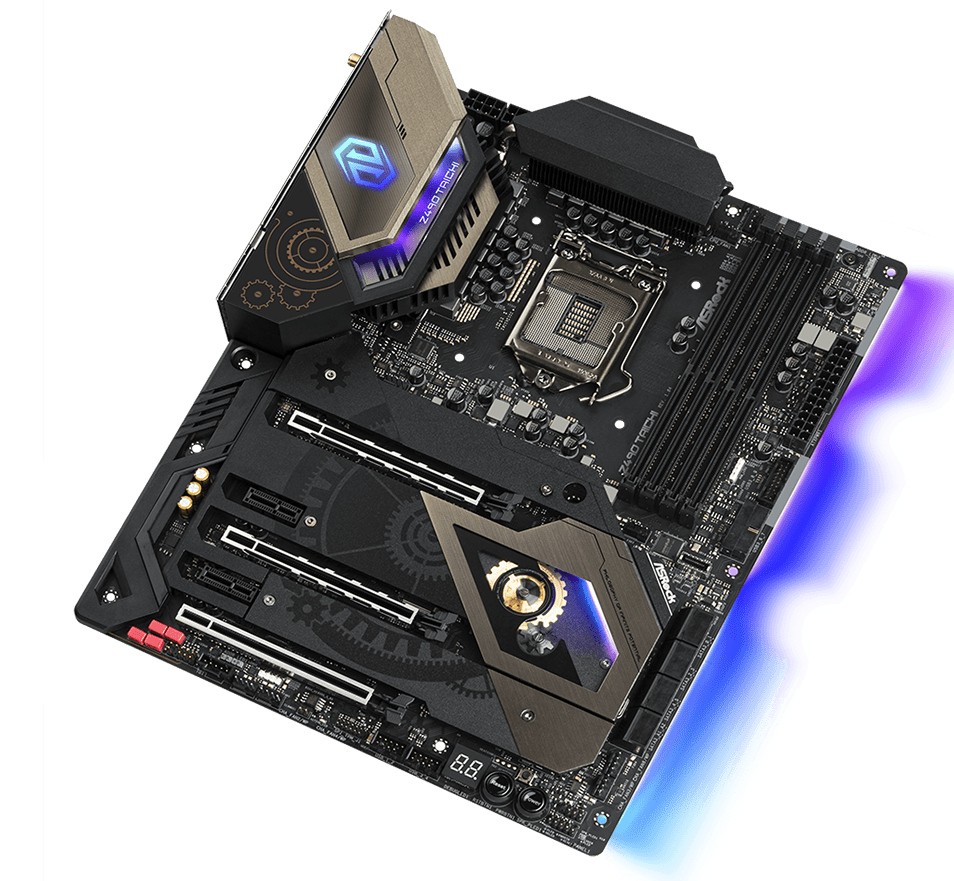

Intels 10 Gen CPUere undersøtter stadig kun PCI GEN 3, men dette bundkort kan faktisk køre PCI GEN 4, så "hvis" Intels 11 Gen CPUere får support for PCI GEN 4, så er du helt fremtidsikret med dette bundkort.

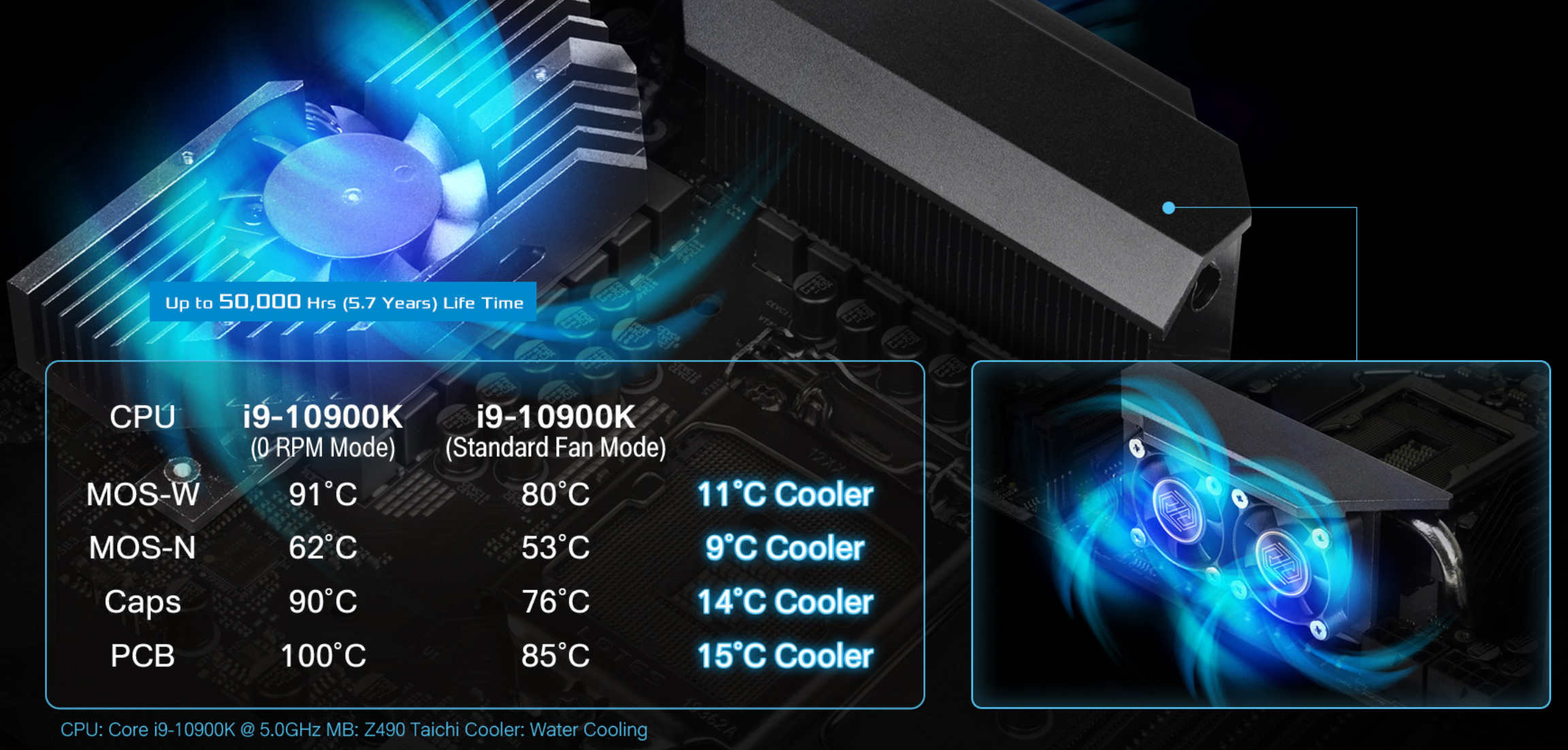

På bundkortets VRM har Asrock valgt at smide 2 blæsere på. AsRock nævner at de med en Core I9 10900K @ 5Ghz får et 9-11°C fald på Mosfets, og mellem 14°C og 15°C forbedret temperatur på kondensatorer og PCB i forhold til Passiv køling. Det er muligt for blæserne at køre med 0 RPM, og de starter først ved 60°C. AsRock anbefalder også, at man bruger vandkøling på dette bundkort da nogle luft kølere kan være for store til at den kan sidde der for disse blæsere.

Af Lyd har bundkortet 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) og så har de valgt at bruge en ESS SABRE9218 DAC til front panalet.

Fulde Specs:

- 7.1 CH HD Audio Med indholdsbeskyttelse Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Har overspændingsbeskyttelse
- WIMA Audio Capacitors (For front Outputs)

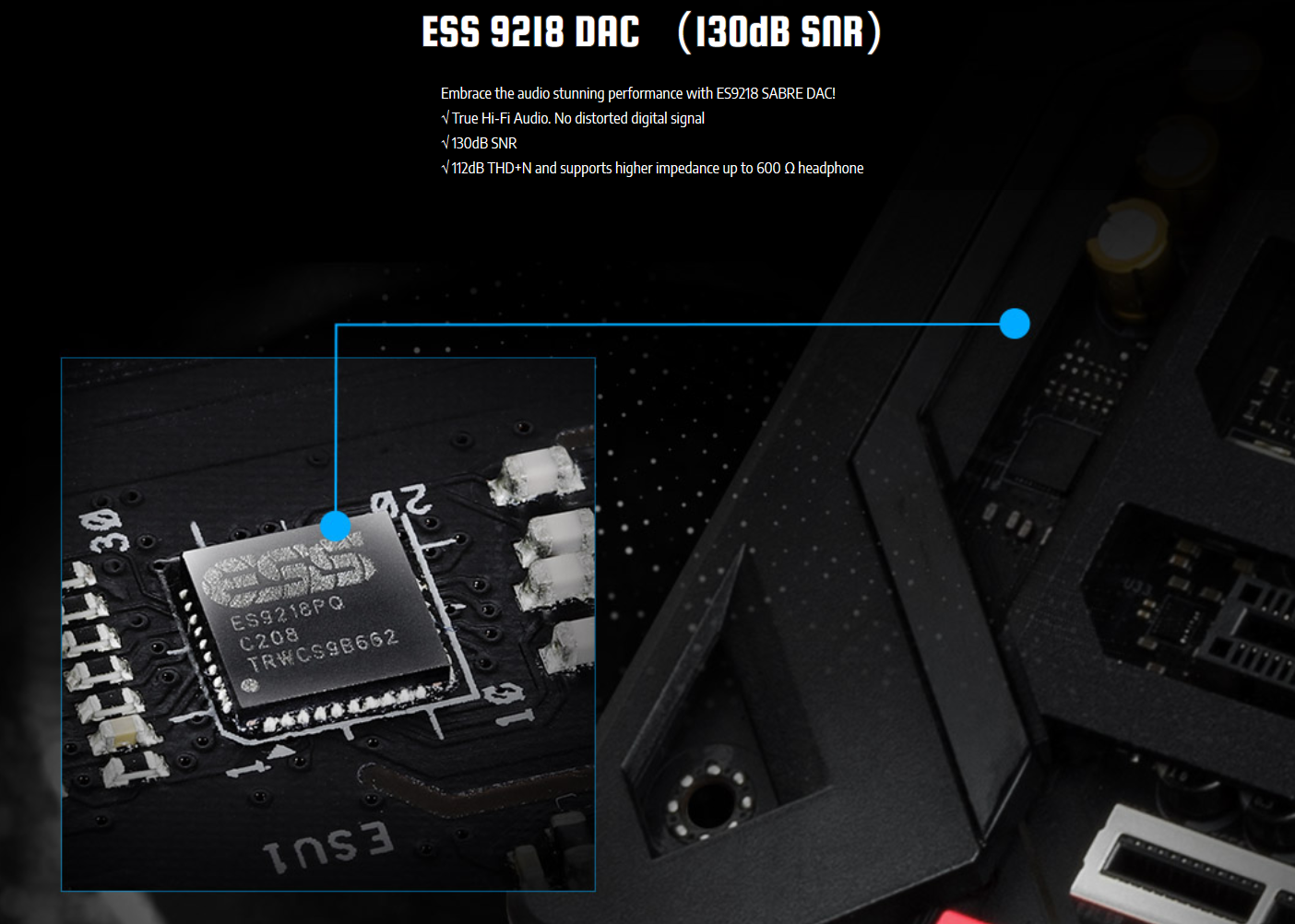

- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Ch annel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio

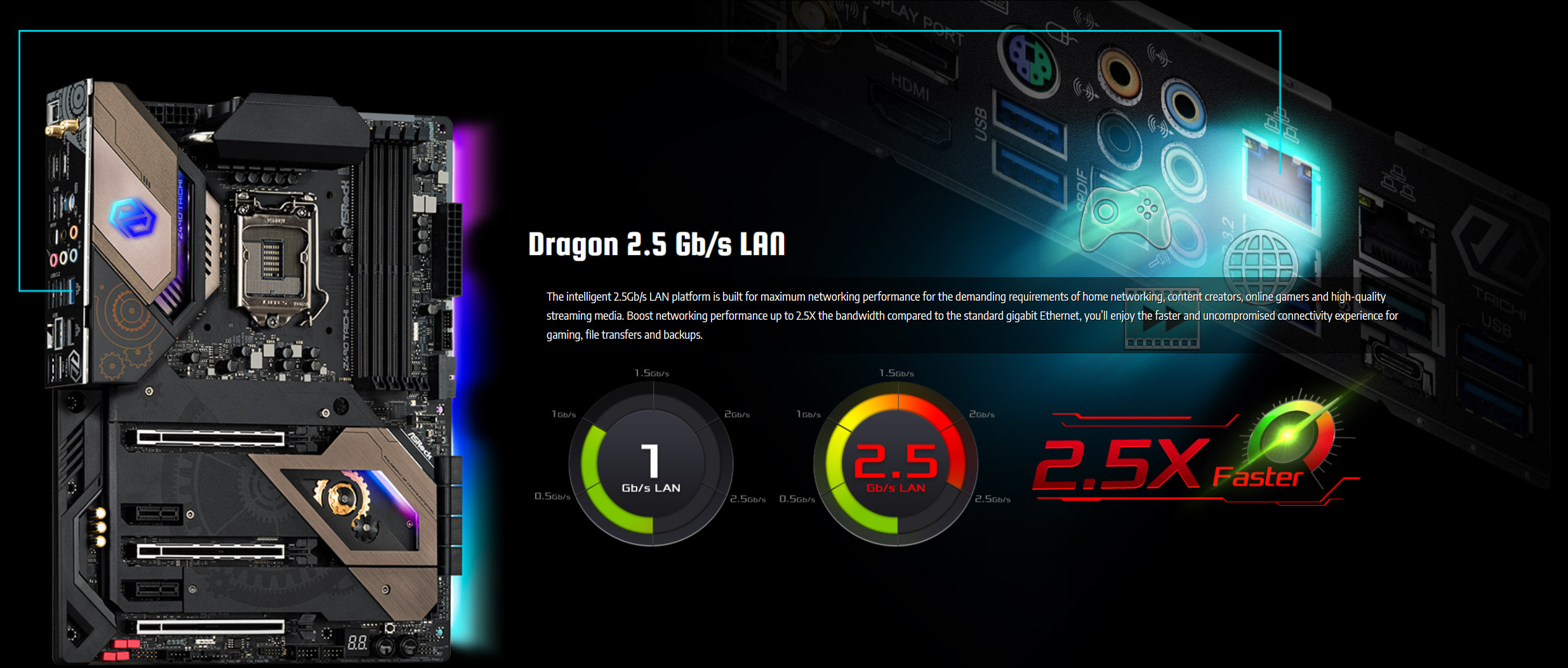

Asrock har givet bundkort deres "Dragon" 2.5 Gigabit LAN og Intel 1G Gigabit.

Som man nok fik set i kassens indhold, så har bundkort indbyggede WiFi, og det er endda den nyeste standard, WiFi 6.

Specificationer:

• Unique Feature
  ASRock USB 3.2 Gen2
  - ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)
  - ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  ASRock Super Alloy
  - XXL Aluminum Alloy Heatsink
  - Premium 60A Power Choke
  - 50A Dr.MOS
  - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  - Combo Caps (Nichicon 12K Black Caps)
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - I/O Armor
  - Matte Black PCB
  - High Density Glass Fabric PCB
  - 2oz Copper PCB 2.5G LAN
  Intel^® 802.11ax WiFi
  ASRock Steel Slots
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Ultra USB Power
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  - Supports 10th Gen and future generation Intel^® Core™ Processors (Socket 1200)
  - Digi Power design
  - 15 Power Phase design
  - Supports Intel^® Turbo Boost Max 3.0 Technology
  - Supports Intel^® K-Series unlocked CPUs
  - Supports ASRock BCLK Full-range Overclocking
  - Supports ASRock Hyper BCLK Engine III
• Chipset
  - Intel^® Z490
• Memory
  - Dual Channel DDR4 Memory Technology
  - 4 x DDR4 DIMM Slots
  - Supports DDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 128GB**
  - Supports Intel^® Extreme Memory Profile (XMP) 2.0
  - 15μ Gold Contact in DIMM Slots


  *Please refer to Memory Support List on ASRock's website for more information.
  Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, CPU GT, DRAM, VPPM, VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
• Graphics
  - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  - Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD/HDR Blu-ray Disc
  - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
  - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports


  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  ** VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.
• Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - WIMA Audio Capacitors (For Front Outputs)
    - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
    - Pure Power-In
    - Direct Drive Technology
    - PCB Isolate Shielding
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Gold Audio Jacks
    - 15μ Gold Audio Connector
    - Nahimic Audio
• LAN
  1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
      - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control
      - Supports Wake-On-LAN
      - Supports Lightning/ESD Protection
      - Supports Energy Efficient Ethernet 802.3az
      - Supports PXE
  1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V)
      - Supports Wake-On-LAN
      - Supports Lightning/ESD Protection
      - Supports Energy Efficient Ethernet 802.3az
      - Supports PXE
• Wireless LAN
  - Intel^® 802.11ax WiFi Module
               - Supports IEEE 802.11a/b/g/n/ax
               - Supports Dual-Band (2.4/5 GHz)
               - Supports WiFi6 802.11ax (2.4Gbps)
               - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
               - Supports Bluetooth 5.1 + High speed class II
               - Supports MU-MIMO
• Slots
  - 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))*
               - 2 x PCI Express 3.0 x1 Slots
               - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
               - Supports NVIDIA^® and SLI™
               - Support NVIDIA^® SLI™ with NVIDIA^® Quadro graphics cards
               - Supports NVIDIA^® NVLink™ with dual NVIDIA^® GeForce RTX series graphics cards**
               - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
               - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


  *Supports NVMe SSD as boot disks

  **NVIDIA^® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA^® if necessary.
• Storage
  - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
               - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
               - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
               - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
               - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**


  *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
                 M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.
                 M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max.
                 M2_3 and USB32_TC_1 share lanes. If either one of them is in use, M2_3 and USB32_TC_1 will downgrade to PCIe Gen3 x2 (16 Gb/s).
                 Please refer to the following link to configure a PCIE SSD RAID on M2_3 slot and other M.2 slots.

               **Supports Intel^® Optane™ Technology (M2_1 and M2_2 only)
                  Supports NVMe SSD as boot disks
                  Supports ASRock U.2 Kit
• Connector
  - 1 x SPI TPM Header
               - 1 x Power LED and Speaker Header
               - 2 x RGB LED Headers*
               - 2 x Addressable LED Headers**
               - 1 x CPU Fan Connector (4-pin)***
               - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
               - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
               - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
               - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
               - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
               - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
               - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel^® Z490) (Supports ESD Protection)
               - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
               - 1 x Front Panel Type C USB 3.2 Gen2 Header (Intel^® Z490) (Supports ESD Protection)
               - 1 x Clear CMOS Button
               - 1 x Dr. Debug with LED
               - 1 x Power Button with LED
               - 1 x Reset Button with LED


  *Support in total up to 12V/3A, 36W LED Strip

               **Support in total up to 5V/3A, 15W LED Strip

               ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

               ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
               CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use.
               CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.
• Rear Panel I/O
  - 2 x Antenna Ports
               - 1 x PS/2 Mouse/Keyboard Port
               - 1 x HDMI Port
               - 1 x DisplayPort 1.4
               - 1 x Optical SPDIF Out Port
               - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
               - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection)*
               - 5 x USB 3.2 Gen1 Ports (Supports ESD Protection)**
               - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
               - 1 x BIOS Flashback Button
               - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)


  *M2_3, SATA3_4, SATA3_5 and USB32_TC_1 share lanes. If either one of them is in use, USB32_TC_1 will downgrade to 16 Gb/s max.

               **USB3_3 is from Intel^® Z490; USB3_12 and USB3_4_5 are from ASMedia ASM1074 hub.
                  Ultra USB Power is supported on USB3_4_5 ports.
                  ACPI wake-up function is not supported on USB3_4_5 ports.
• Software and UEFI
  Software
                 - ASRock Motherboard Utility (A-Tuning)
                 - ASRock Dragon 2.5G LAN Software
                 - ASRock Polychrome SYNC*
               UEFI
                 - ASRock EZ Mode
                 - ASRock Full HD UEFI
                 - ASRock My Favorites in UEFI
                 - ASRock Instant Flash
                 - ASRock Internet Flash
                 - ASRock Easy RAID Installer


  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
    - Quick Installation Guide, Support CD
                 - 4 x SATA Data Cables
                 - 1 x ASRock SLI_HB_Bridge_2S Card
                 - 1 x ASRock WiFi 2.4/5 GHz Antenna
                 - 1 x ASRock Screwdriver
                 - 3 x Screws for M.2 Sockets
                 - 2 x Standoffs for M.2 Sockets
• Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
                 - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
                 - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
                 - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
                 - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCFSR_OC, VCCSFR
• Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
                 - 2oz Copper PCB
• OS
    - Microsoft^® Windows^® 10 64-bit
• Certifications
    - FCC, CE
                 - ErP/EuP ready (ErP/EuP ready power supply is required)
