Det trådløse netværkskort i alt sin enkelthed. Den er forholdsvis anonym i udseenet, om end dog lidt stor i det. Den sorte prik imellem logoet og USB tilslutningen, er en grøn LED-indikator, der viser aktivetet på kortet.

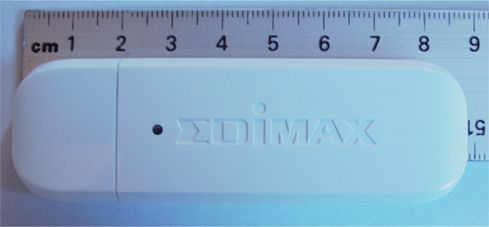

Som vi kan se på dette billede, så måler netkortet små 9cm. Her må man sige at USB-forlængeren på 1m kommer til sin ret, for den er altså ikke helt lille, men den formår alligevel at virke lidt mindre i virkeligheden, måske på grund af den anonyme farve.

Specifikationer

EW-7718Un complies with 802.11n draft 2.0, the next generation wireless standard. With the advanced MIMO technology, it can support the data transmission rate 6 times more (up to 300Mbps) and the coverage 3 times more than IEEE 802.11b/g devices.

EW-7718Un stable wireless connection and high bandwidth enable you enjoying the network applications without any interruption.

EW-7718Un supports the WPS configuration function. This function provides easy procedures to set up wireless security. Through the Edimax configuration tool to setup the WPS function then you can simplify the security setting.

EW-7718Un with easy-to-install USB2.0 interface - a very common expansion slot of desktop or laptop computers - even inexperienced computer user can get this wireless network card installed on his or her computer in just few minutes!

Complies with 802.11n Draft 2.0, 802.11g and 802.11b Standards.
Provides further coverage, less dead spot and higher throughput (Up to 300Mbps) with MIMO technology.
Supports WMM, WMM-PS and WMM-SA (IEEE 802.11e QoS standard).
Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x) for high security level.
Supports WPS configuration.
Supports operating system: Windows 2000/XP/XP64/Vista.
Supports USB 2.0/1.1 interface.
Portable and mini-size design.

Standard	IEEE 802.11b/802.11g/802.11n Draft 2.0
Bus Type	USB 2.0 Type A
Frequency Band	2.4000~2.4835GHz (Industrial Scientific Medical Band)
Data Rate	11b: 1/2/5.5/11Mbps 11g: 6/9/12/24/36/48/54Mbps 11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 72/144Mbps) 11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 150/300Mbps)
Security	WEP 64/128, WPA, WPA2 Cisco CCX V1.0, V2.0 & V3.0 Compliance
Antenna	2 x 2dBi chip Antennas
Drivers	Windows 2000/XP/XP64/2003/ Vista
LEDs	Link/Activity
Dimension	87(L)x27(W)x10(H)mm
Temperature	32~131°F (0 ~55°C)
Humidity	Max. 95% (Non Condensing)
Certification	FCC , CE

På næste side kigger vi nærmere på installation og software.
